Cored Wire
Enquire for this product
Origin: China
Quality Certificate: CIQ, SGS or Alfred H Knight upon request
Minimum Order Quantity: 10 coils
Lead Time: 4-6 weeks upon confirmation of order, subject to port of discharge
Delivery Terms: CIF
Packing: As below or as per
customers’ request
Payment Terms: L/C at sight or 30% T/T in Advance & 70% against shipping documents via bank
Cored Wire
Cored wire in different grades are used to be de-oxidant agent during the process of steel making. They are normally injected into molten steel by using an injection machine to obtain the maximum performance.
Calcium Silicon Cored Wired 30(CaSi30)
Ca: 30±2%
Si: 60±2%
Fe: 3.0%
C: 1.0%
P: 0.03% max
S: 0.04% max
Al: 1.5% max
Wire Diameter: 13 mm
Sheath Thickness: 0.35 mm
Unit Powder Weight: 225±5 g/m
Unit Steel Sheath weight: 150g/m
Total Wire Length: 5200 m
Total Powder Weight: 1170 kg
Total steel sheath weight: 780 kg

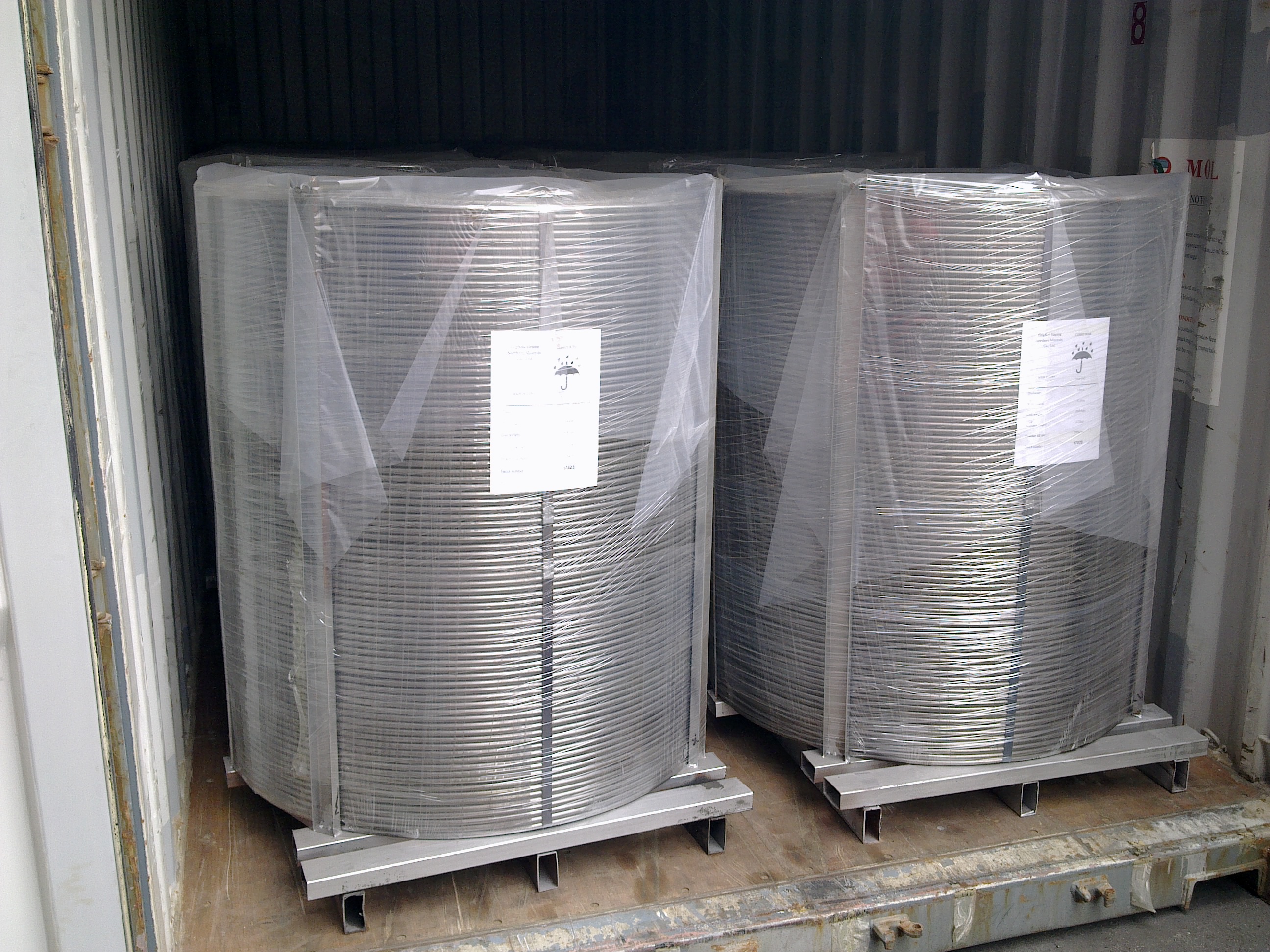

Coil Type: Vertical Cage
Coil Inner Diameter: 600 mm
Coil Outer Diameter: 1150 mm
Calcium Silicon Cored Wired 40(CaSi40)
Ca: 40±2%
Si: 50±2%
Fe: 2.0%
C: 1.0%
P: 0.03% max
S: 0.04% max
Al: 1.0% max
Wire Diameter: 13 mm
Sheath Thickness: 0.35 mm
Unit Powder Weight: 200±5 g/m
Unit Steel Sheath weight: 150g/m
Total Wire Length: 5200 m
Total Powder Weight: 1040 kg
Total steel sheath weight: 780 kg
Coil Type: Vertical Cage
Coil Inner Diameter: 600 mm
Coil Outer Diameter: 1150 mm
Ferro Calcium Cored Wire (FeCa)
Ca: 30±2%
Fe: 68±2%
C: 0.013%
P: 0.03% max
S: 0.03% max
Al: 2.0% max
Wire Diameter: 13 mm
Sheath Thickness: 0.35 mm
Unit Powder Weight: 255±5 g/m
Unit Steel Sheath weight: 150g/m
Total Wire Length: 5200 m
Total Powder Weight: 1326 kg
Total steel sheath weight: 780 kg
Coil Type: Vertical Cage
Coil Inner Diameter: 600 mm
Coil Outer Diameter: 1150 mm
Pure Calcium Cored Wired (PuCa)
Ca: 98%
C: 0.013%
P: 0.03% max
S: 0.03% max
Al: 2.0% max
Wire Diameter: 9 mm
Sheath Thickness: 0.45 mm
Unit Powder Weight: 50±5 g/m
Unit Steel Sheath weight: 160g/m
Total Wire Length: 5200 m
Total Powder Weight: 260 kg
Total steel sheath weight: 832 kg
Coil Type: Vertical Cage
Coil Inner Diameter: 600 mm
Coil Outer Diameter: 1150 mm
The chemical compositions can be customized according to the customers’ requirement.
Enquire for this product
